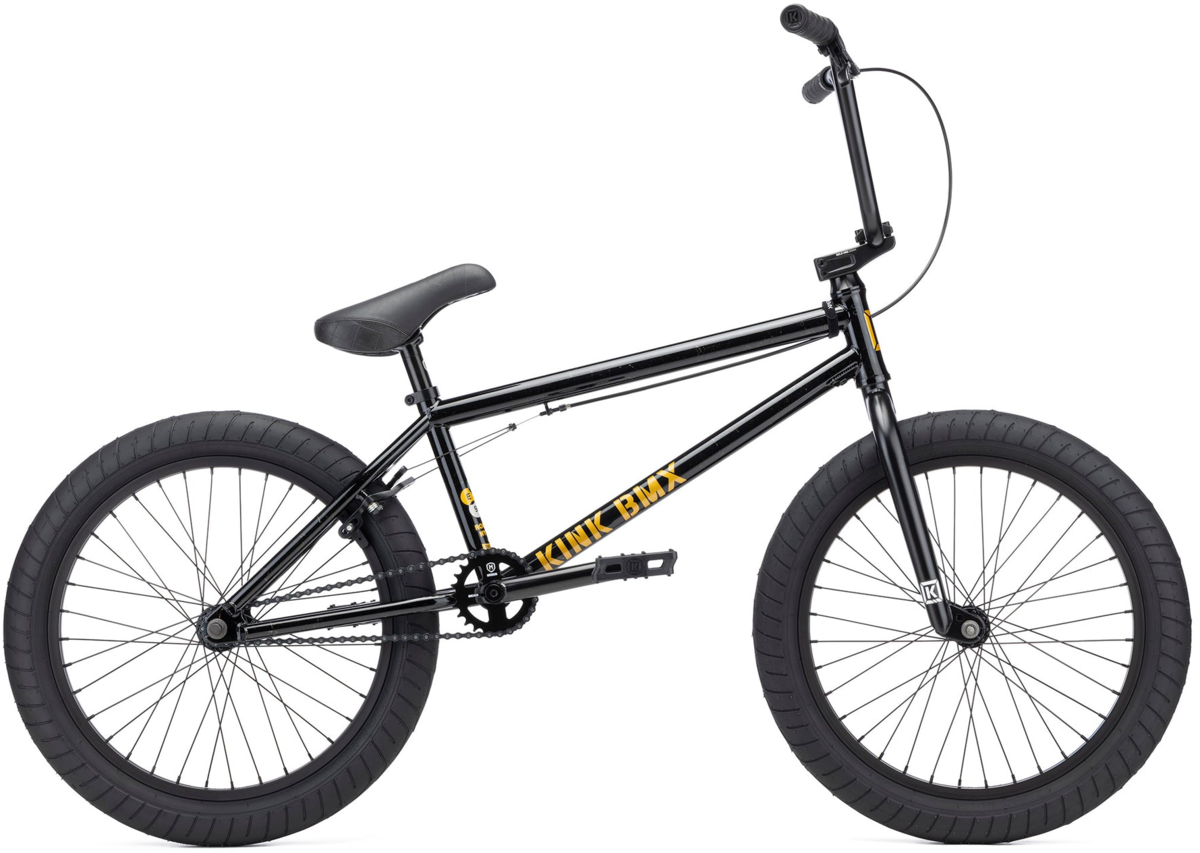

Kink Gap XL
$469.99
Details
The 2026 Gap XL is a versatile bike ready to handle more serious riding. This model introduces 4130 chromoly steel tubing in areas throughout the frame, fork, and handlebars to improve overall strength and longevity of the bike. Some other upgrades, like the Stealth seat system, offer more adjustability and modern compatibility. Its moderate to modern geometry is great for all types of riding, and the XL means it has been sized up for taller riders. This year’s Gap XL is available in Black Gold and Fern Green colorways and is also available in a traditional size.
| Toptube Length | 21" |
|---|---|
| Chainstay Length | 13.25" |
| Headtube Angle | 75° |
| Seattube Angle | 71° |
| Standover Height | 9? |
| Bottom Bracket Height | 11.6" |
| Fork Offset | 32mm |
| Rider Height | Bike Size | Toptube Length |
|---|---|---|
| 2'4" - 3'0" (71 - 91 cm) | 12" | 12" - 12.5" |
| 2'8" - 3'6" (81 - 106 cm) | 14" | 14" - 14.5" |
| 3'2" - 4'0" (96 - 122 cm) | 16" | 16" - 16.5" |
| 4'0" - 4'10" (122 - 147 cm) | 18" | 18" - 18.5" |
| 4'10" - 5'3" (147 - 157 cm) | 20" | 19.75" - 20.25" |
| 5'3" - 5'6" (157 - 168 cm) | 20" | 20" - 20.5" |
| 5'6" - 5'9" (168 - 175 cm) | 20" | 20.25" - 20.75" |
| 5'9" - 6'0" (175 - 183 cm) | 20" | 20.5" - 21" |
| 6'0" - 6'3"+ (183 - 190 cm +) | 20" | 20.75" - 21.5" |
| 5'4" - 6'2"+ (162 - 188 cm +) | 26" | 22" - 22.5" |
Specs
| Frame | Kink Gap XL 100% 4130 Chromoly HT, TT and DT |
|---|---|
| Fork | Kink Stryker 4130 Chromoly Steerer, Tapered Fork Legs |
| Rims | Mission X7 |
| Hubs | FRONT HUB: Mission Covert Unsealed 3/8" Axle/REAR HUB: Mission Engage Sealed Cassette 14mm |
| Tires | Kink Sever 2.4" |
| Bottom Bracket | Sealed Mid 19mm |
| Crankset | Kink Ridge 3pc Tubular Chromoly 170mm - 8 Spline |
| Chainrings | 9T |
| Chain | Mission 410 |
| Brakes | Mission Cease V2 |
| Brake Levers | Mission Token |
| Handlebars | Kink T925 9.25" 100% 4130 Chromoly |
| Tape/Grips | Kink Ace Flangeless |
| Stem | Kink Bold HRD 50mm |
| Headset | Mission Sealed Integrated (41.8 x 45) |
| Seatpost | Mission Stealth |
| Saddle | Kink Plymouth/Bomber Stealth |
| Pedals | Kink Hemlock |
* Subject to change without notice.
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| Black Gold / One Size / 20-inch | 764613536980 | K440BLK26 |
